Pennaccs® Supporting System

Availability:

Description:

PENNACCS preformed system specially design for PVC/TPO waterproofing system, perfect customization service makes it super fit your project, and its easy installation design will help you save both your time and money.




Type & Parameter:

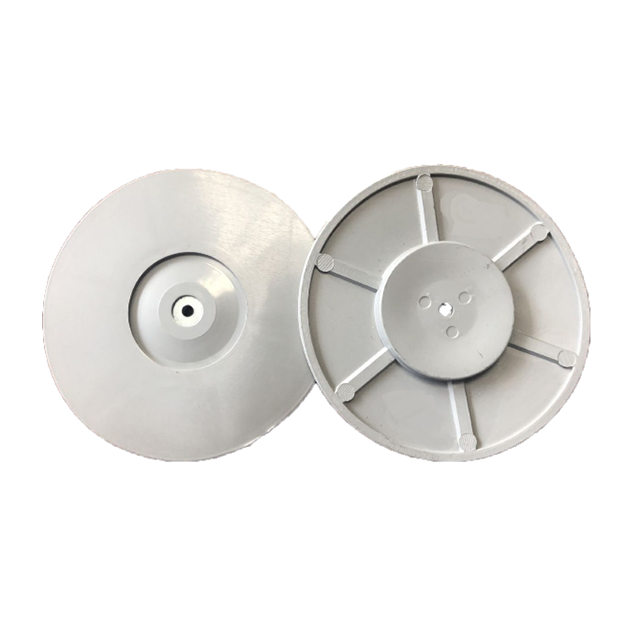

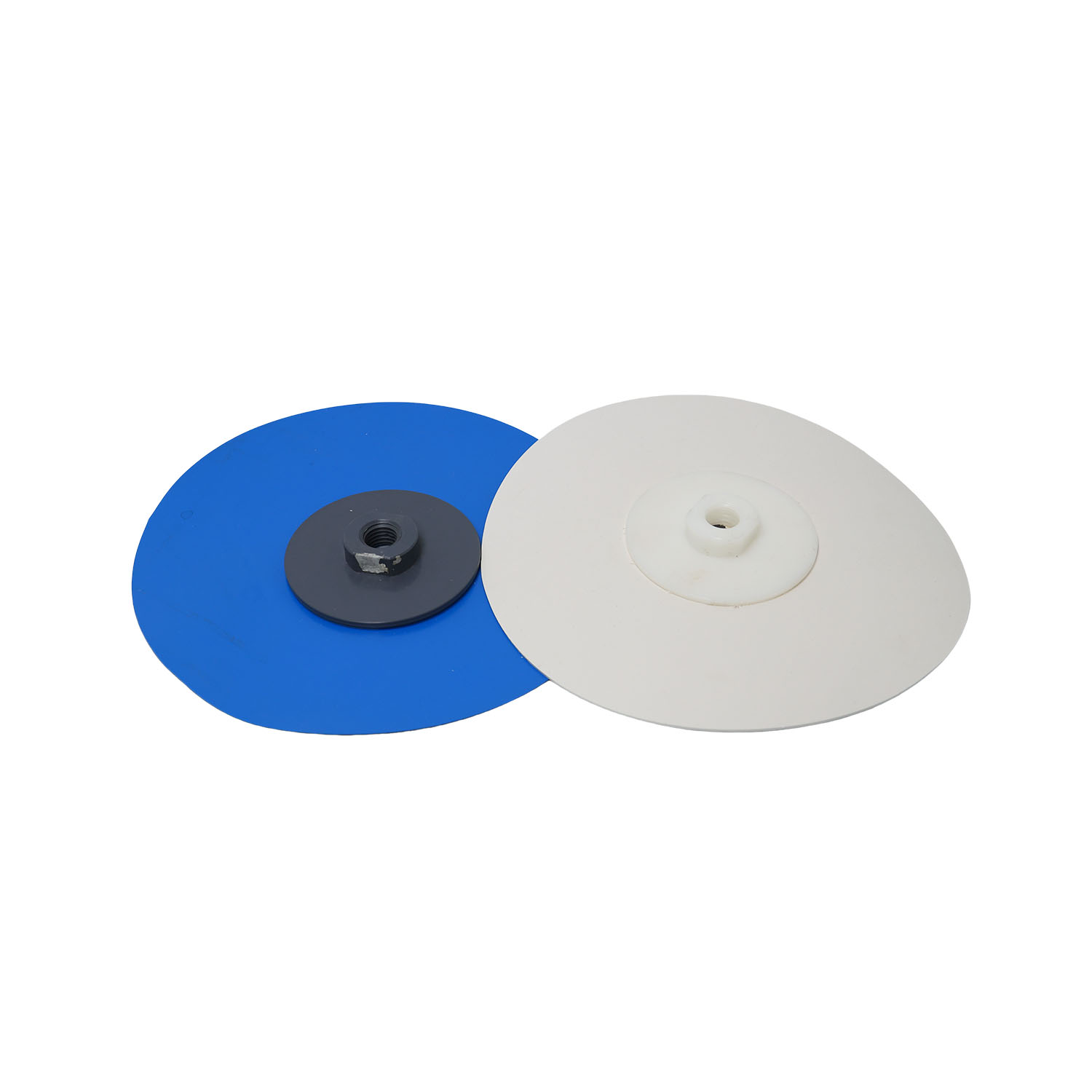

PENNACCS PF100 is a kind hot-melt, flexible, PVC based round plastic disc.


Type

Height

Diameter

PENNACCS PF75

10mm

75mm

PENNACCS PF100

8mm

100mm

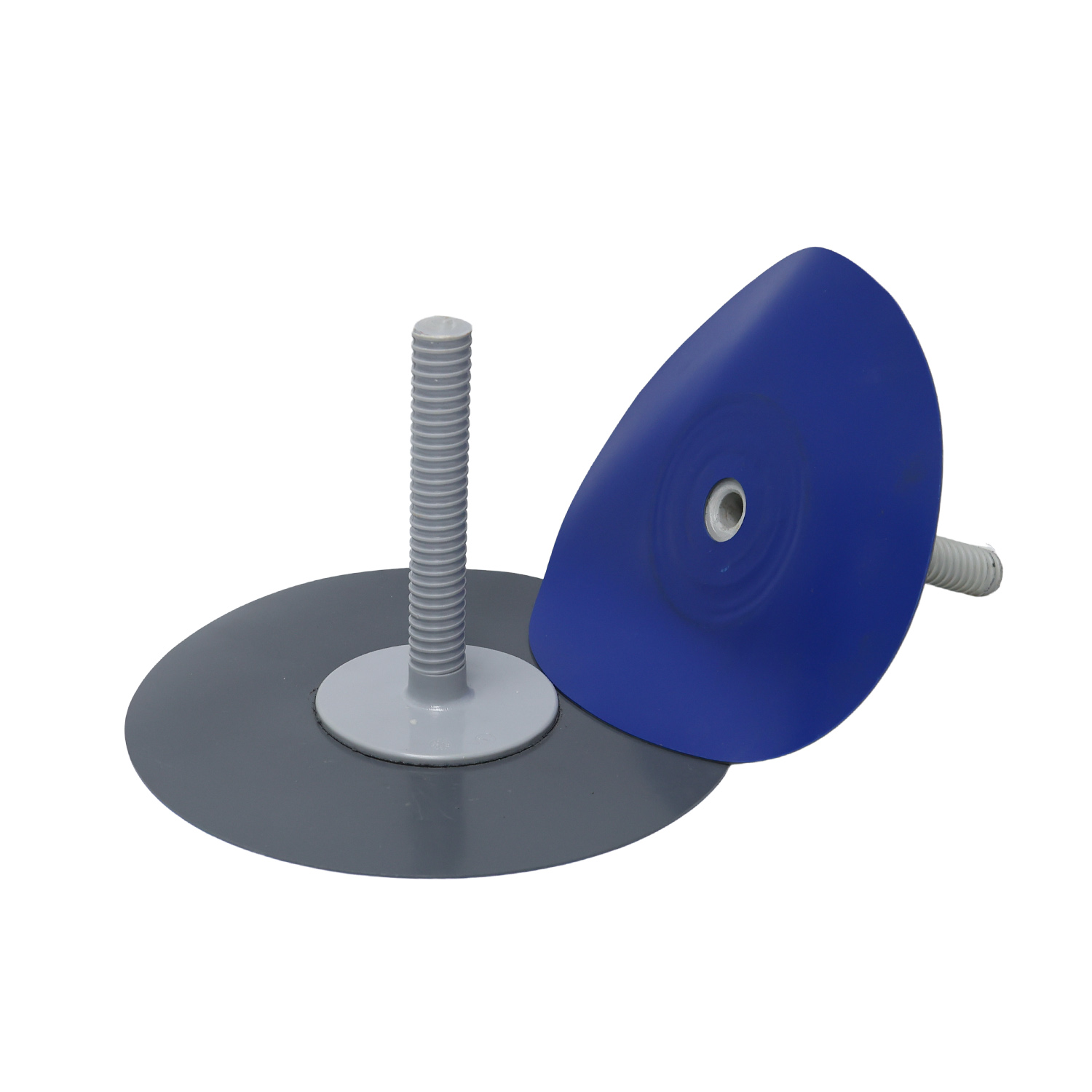

PENNACCS PF300 is a kind hot-melt, flexible, PVC-based round plastic anchor.


Type

Height

Diameter

PENNACCS PF300

200mm

280mm or 300mm

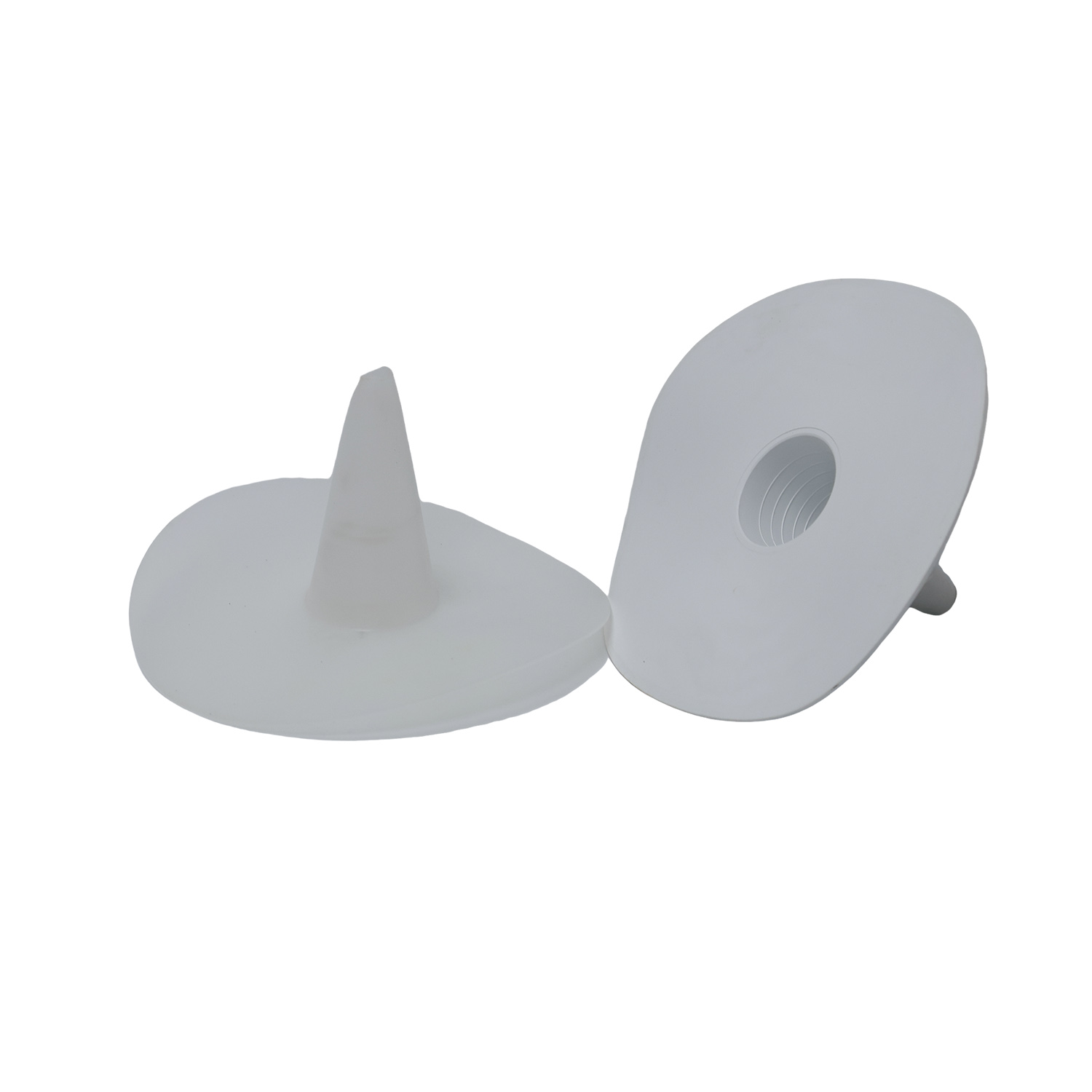

PENNACCS PF200 is a kind hot-melt, flexible, PVC based preformed trumpet.



Type

Height

Diameter

PENNACCS PF200

110mm

210mm

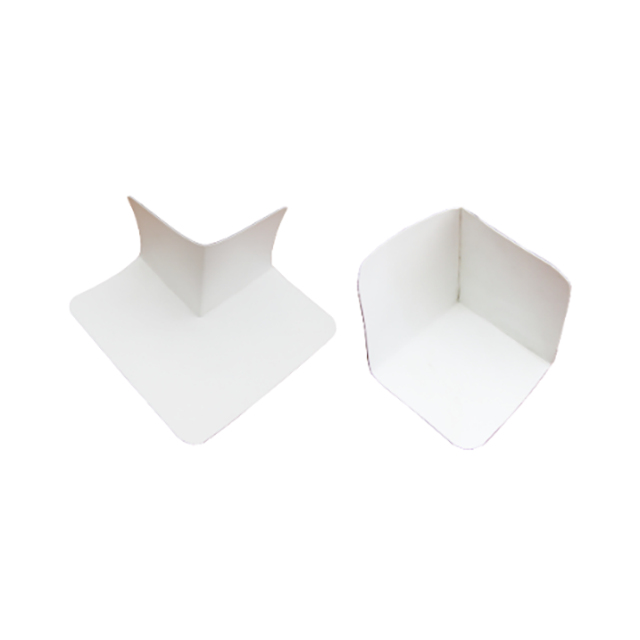

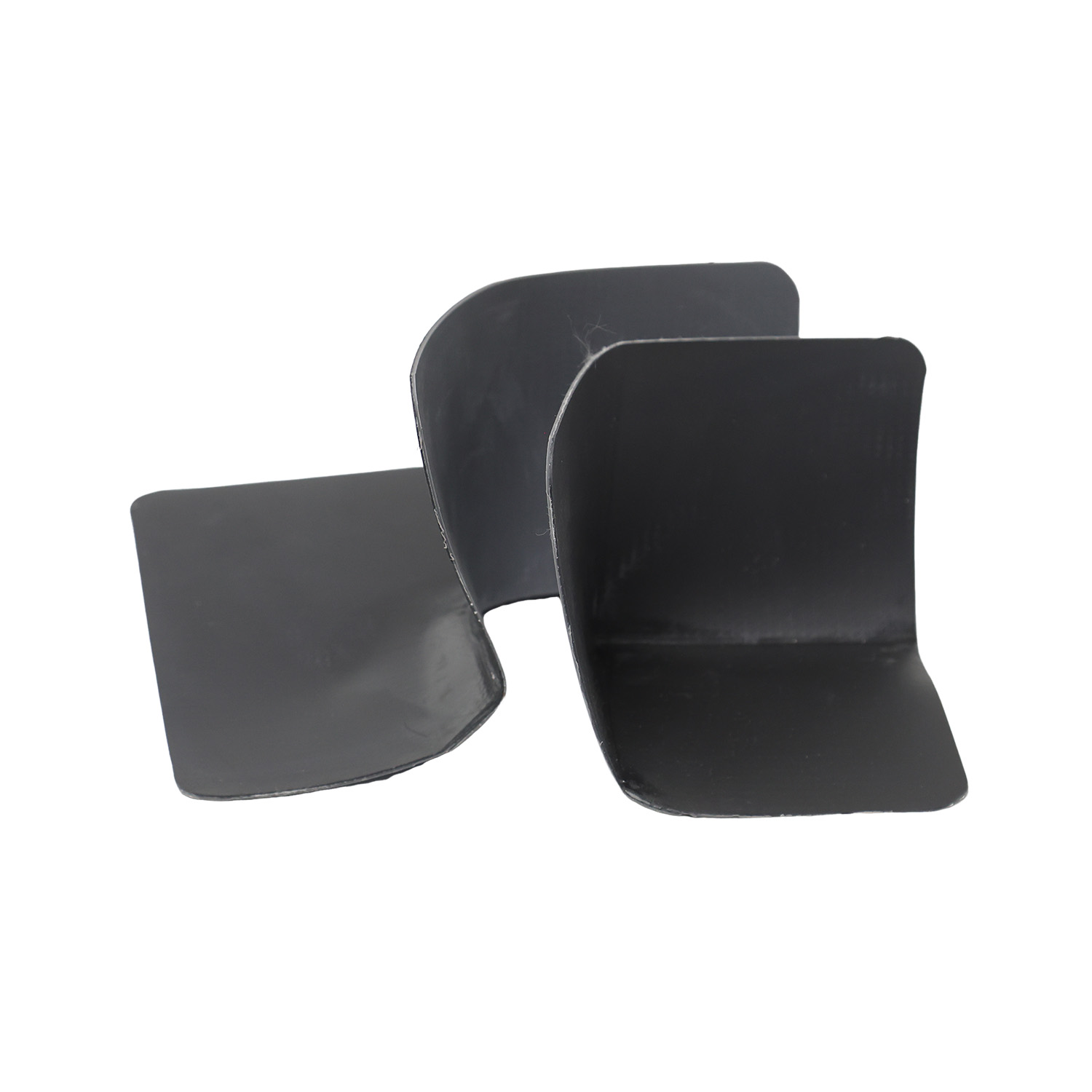

PENNACCS TF105/106 or PF105/106 is a kind hot-melt, flexible, TPO/PVC based prefabricated plastic parts for external/ internal corner.


Type

Height

Length X Width

PENNACCS TF/PF105

100mm

200mm X 200mm

PENNACCS TF/PF106

100mm

100mm X 100mm

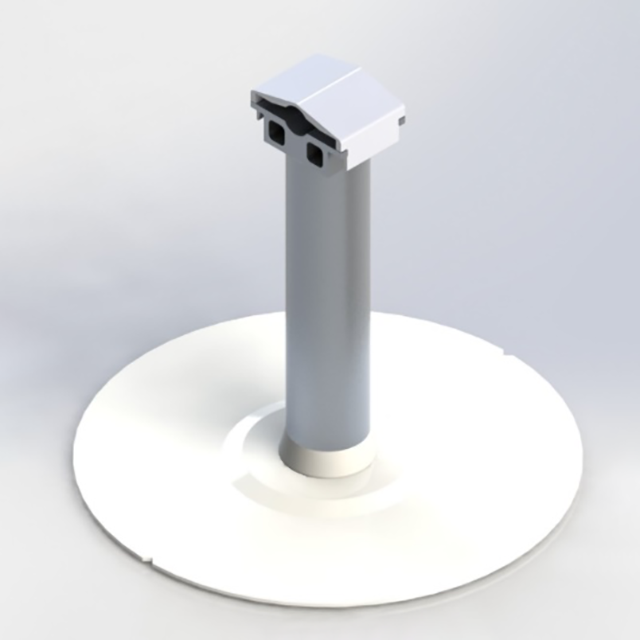

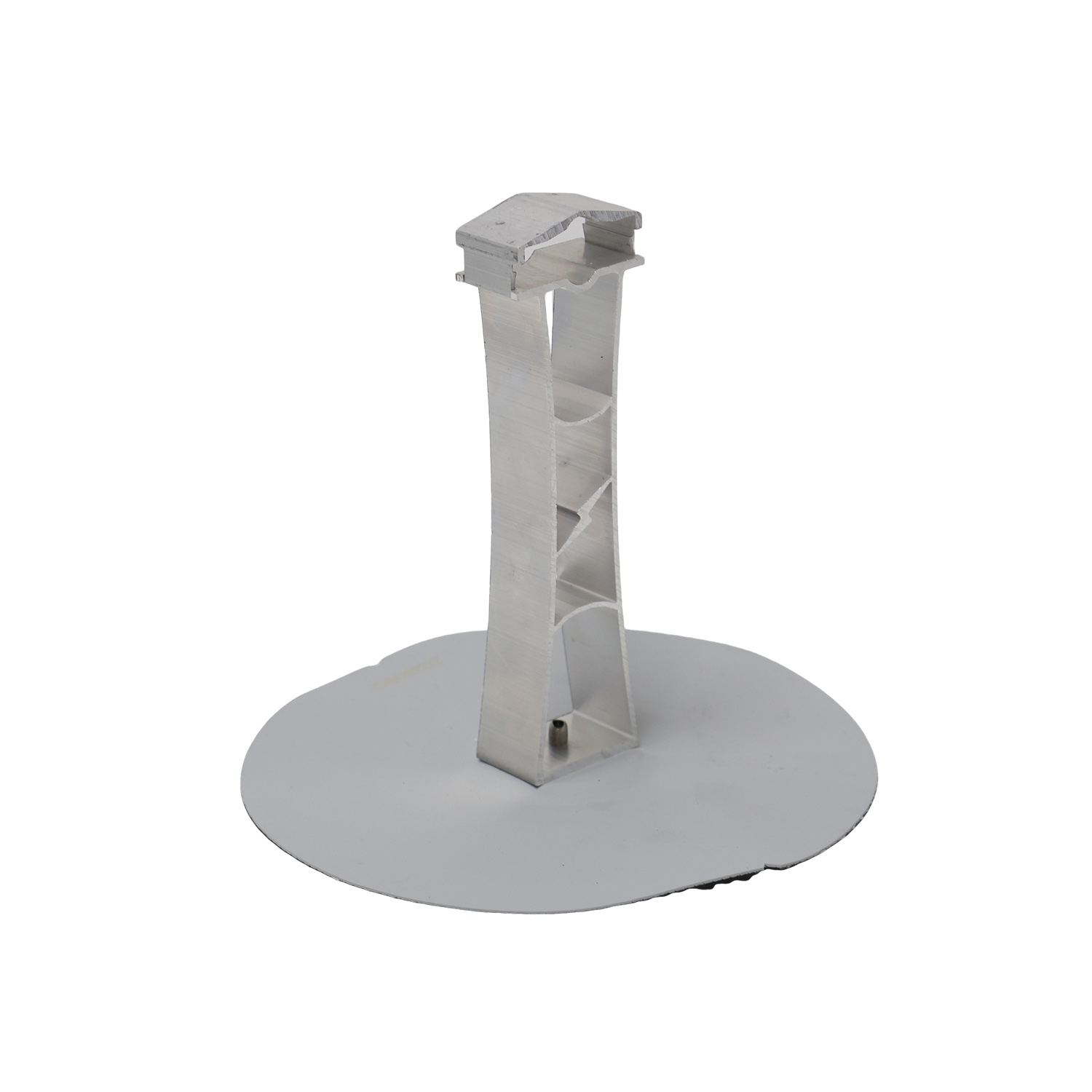

PENNACCS TF/PF107 is a kind hot-melt, flexible, TPO/PVC based prefabricated metal Alu insulating lightning support.


Type

Height

Diameter

PENNACCS TF/PF107

150mm

180mm

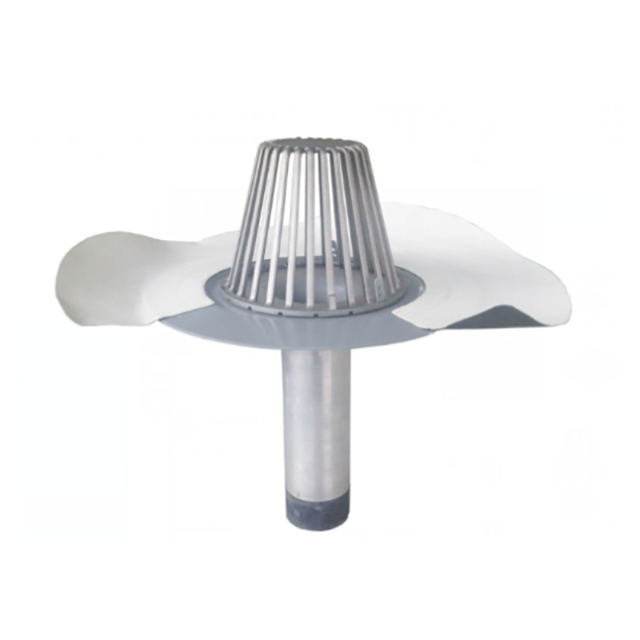

PENNACCS TF/PF108 and TF/PF109 is a kind hot-melt, flexible, TPO/PVC based prefabricated metal outfalls.

Type

Height

Length X Width

PENNACCS TF/PF108

250mm

200mm X 200mm

PENNACCS TF/PF109

250mm

100mm X 100mm

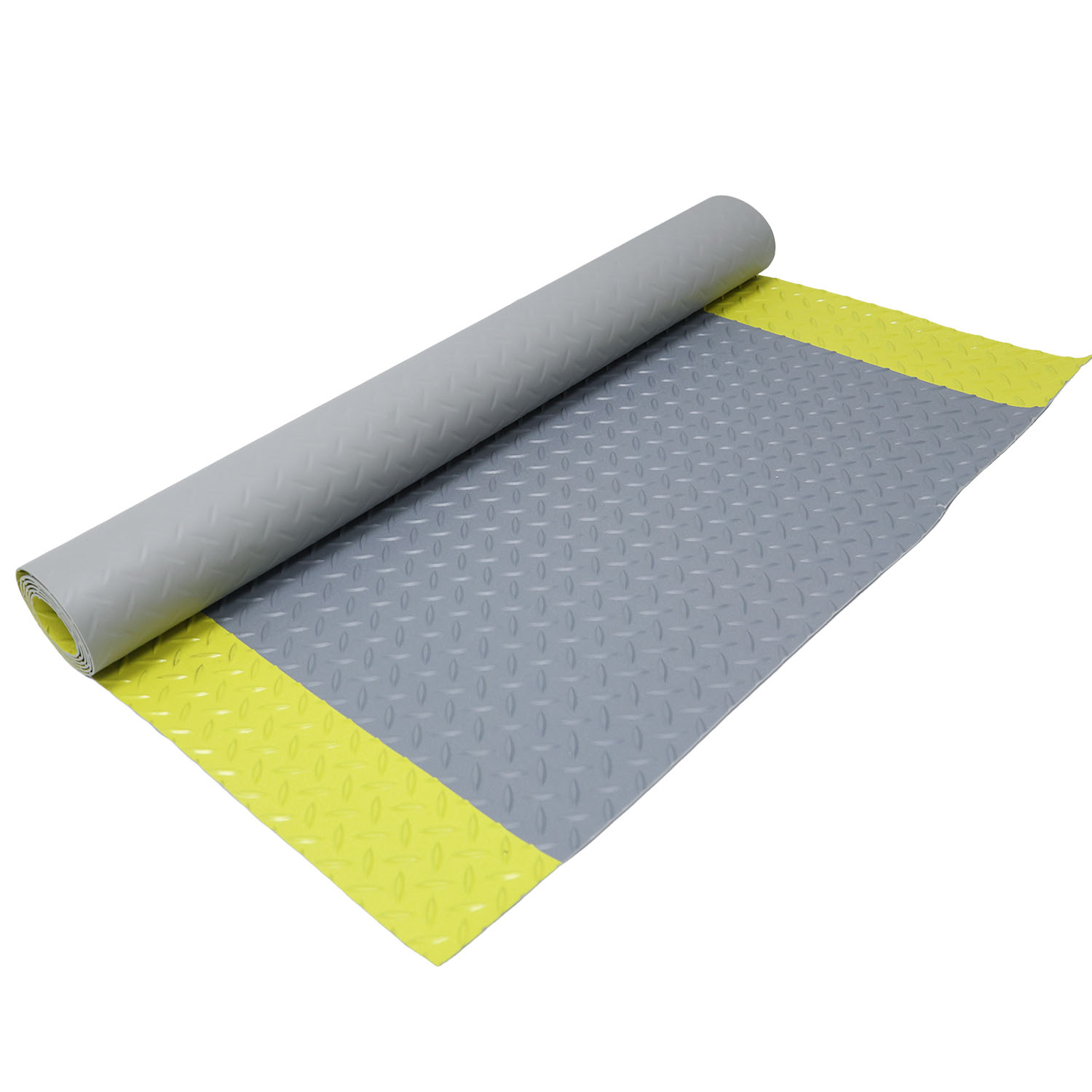

PENNACCS TF/PF10 is a kind hot-melt, flexible, TPO/PVC based walkway protection pad.

Type

Thickness

Width

Length

PENNACCS TF/PF104

3.0mm

860mm

15m
